2017年8月24日 星期四

Suppress Purple Fringes with Photo Mate R3

Purple fringing in some 360 cameras (such as Theta S) is so irritating - silhouette of lamp poles, leaves, and border of buildings in colour purple.  For Android phone user, "painting" the purple to grey (use Effect> Colour> lower saturation there with a brush tool - Photo Editor, Macgyver), as if shadows in back light, is a resonable method, but too tedious.

Pepe Vazquez of Ricoh Theta User Group introduced us the ability of Photo Mate R3 in suppressing the saturation of colour purple for purple fringing.  I think it works.

Here is a quick illustration.

You may get the trial version here.

I like this app because it works, and it can be called out by sharing function of photos directly in photo browser and in photo editors.  It can output 100% JPG and metadata (except 360) is retained.  It has many develope (edit) functions you may expected.  Here I only concentrate on purple fringing.

I have a 360 photo with purple fringing at the silhouette of the vine frames.

The photo was shared to Photo Mate R3 and "developed" (edited)


Scroll down the adjustments there is colour satuation sliders.  Instead of basic cokours, it had a slider for purple

Slide purple to 0 and the purpke fringing becomes grey.  Sometimes the magenta and blue also need to be suppressed.  The photo yes will become more dull at the sky.  Increasing the magenta and blue may heal it, you can see the result on preview and fine tune.  Raising the Vibrance has similar effect.
Here I use Share instead of save as the 360 metadata needs to be injected back, and Share can choose 100% JPG, (and remembers it).  In the work flow, the photo is usually shared to Theta Converta Pro toturn up nadir for patching, or for leveling.  If leveling not required, share it to 'Meta 360: Photosphere XMP Tagger'.

Here is the completed photo

Embed with Kuula.co Test


2017年8月22日 星期二

Patch Lines and Tiled Shape in 360 Photos with Photo Editor (Android, Macgyver)

We are still showing Android Apps Photo Editor (Macgyver) function applicable to patching 360 photo of nadir or the photographer.  The case here is the area contain shapes/tiles/ lines/ borders needed to be restored but, owing to the distortion of flat 360 photos, there is hardly areas at correct angle and shade to Clone naturally.

The function used on the Photo Editor Apps is "Free cropping" and "Add image"

I have the following:

- a 360 photo generaly patched away photographer and shadow of selfie stick by rough cloning.

1. Choose the Crop (free) function, use brush tool to paint the required area, make sure the border is soft.

Use Undo and Eraser to adjust.

***Save the crop as PNG to retain Transparency

***Do not exit***.  Use UNDO to return to full image.

2. Add the Crop

Position it at correct size, ratio, angle.  Zoom in/ out base photo,

Use Move function to fine adjust.

Use Layer> Duplicate (select which layer first) to apply same layer.

Lock down earlier layer before adjust new layer.

Done.

3. Here I clone and patched the front shadow

4.  Repeat process on the white line.


5.  Repeat process on the stone wall .

Done.


6. save the image or share it to Theta Converter Pro to adjust level wmd heading.

NB
For patching nadir, suggested to roll it to the middle and rotate to show as much straight lines as posible before further working on it.

2017年8月6日 星期日

View 360 photos on your Android Phone for VR viewers

THETA S Apps
Single select if image was saved in a different name or folder








 TurnMe Panorama

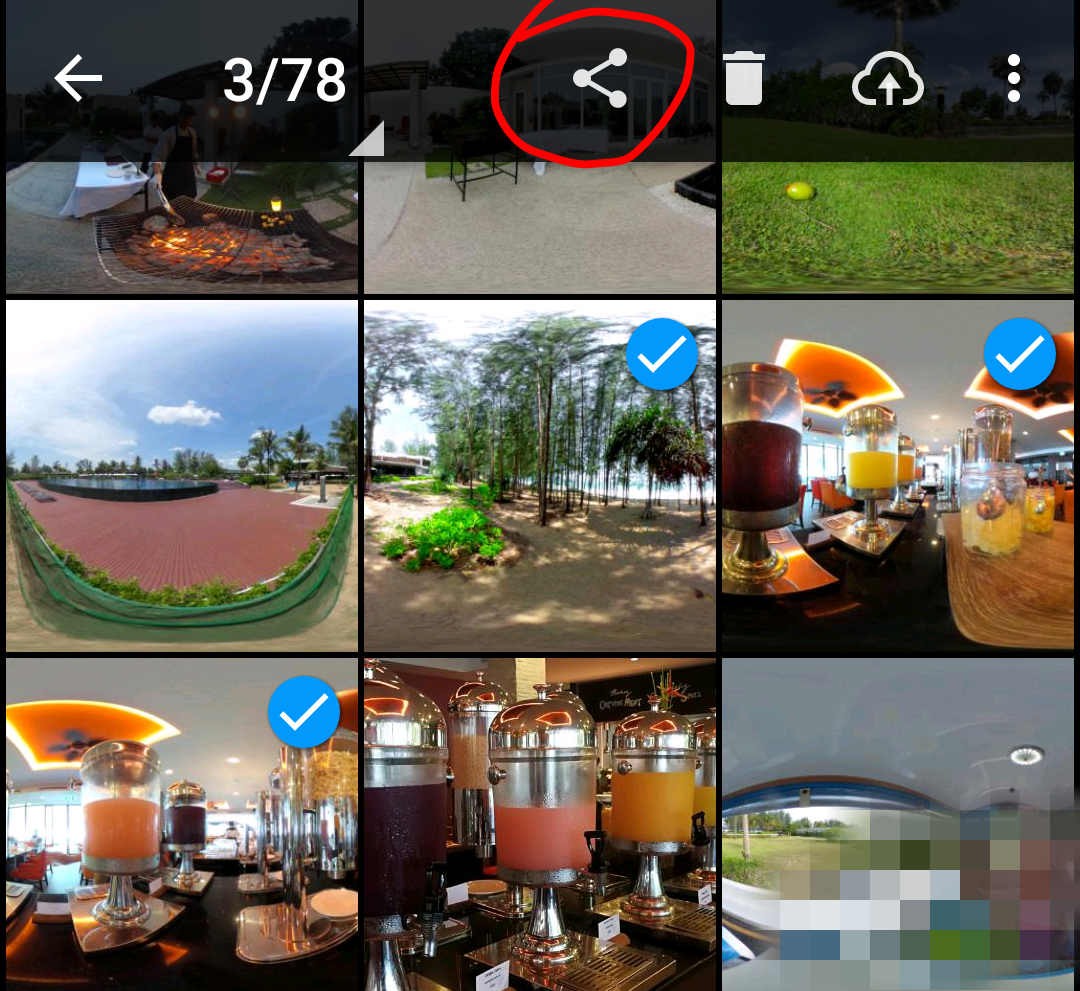

Can multiselect on your photo browser and shared to the apps
